Service Oriented Architecture - Slice and Dice

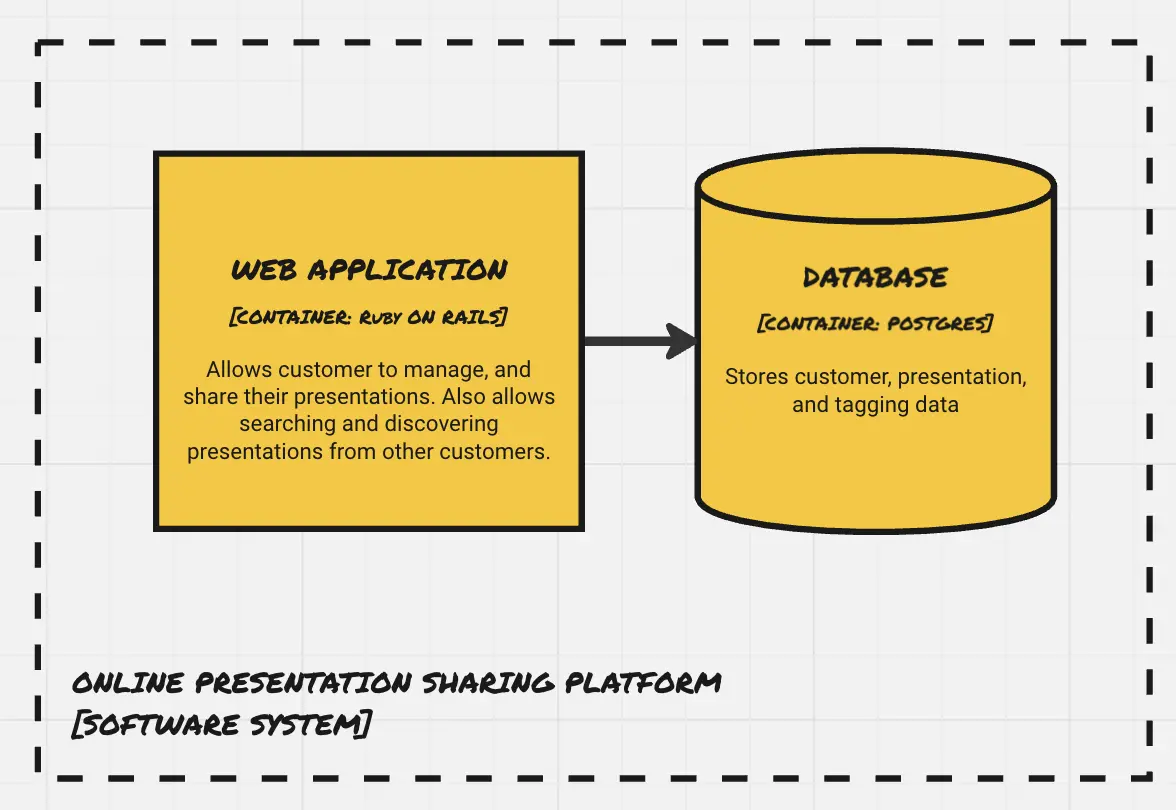

Monolithic architecture refers to an architectural style where a single, unified application is built in one large codebase and deployed as a single unit. A small to medium-sized team can successfully use a monolithic approach without their code becoming a legacy system, provided they adhere to clean code practices and maintain a modular codebase. While a single monolithic codebase represents monolithic architecture, these monolithic applications can also be part of an ecosystem that embraces service-oriented architecture. Here are two examples to illustrate these scenarios:

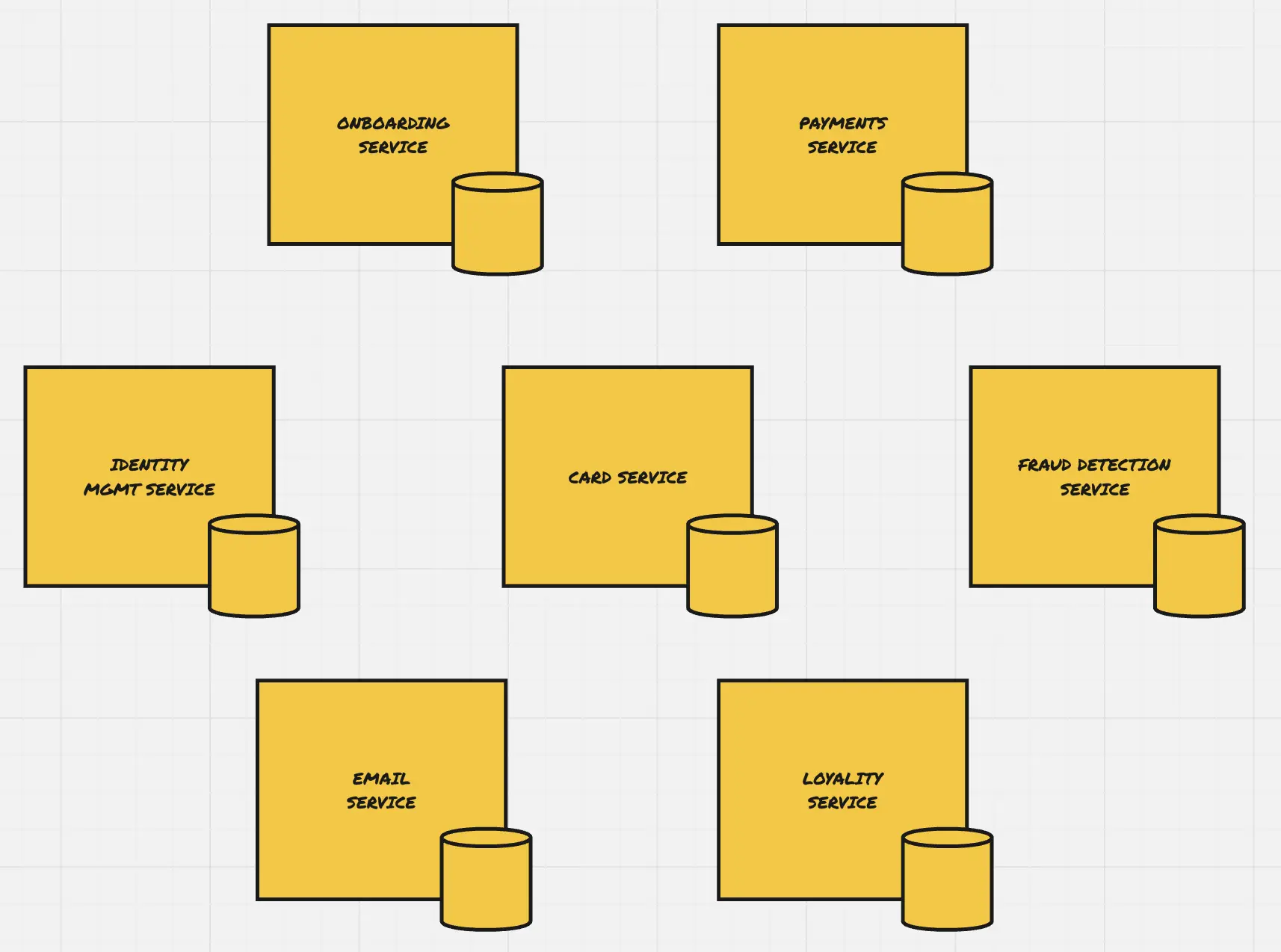

Microservices - also known as the microservice architecture - is an architectural style that structures an application as a collection of services that are:

• Independently deployable
• Loosely coupled

Services are typically organized around business capabilities. Each service is often owned by a single, small team.

The definition from microservice.io is a fine-grained set of the characteristics as compared to the service definition from the SOA. The additional characteristics of microservices include being 'loosely coupled,' having a clear ownership aspect, and being organised around business capabilities. These extras are what makes the definition of microservices a strict subset of the definition of service in SOA. The loosely coupled nature of microservices lays the foundation around communications between services i.e. communicating with lightweight mechanisms, often an HTTP resource API, or a message broker. The ownership aspect with a single team talk to autonomy and the ability to move fast. The organisation around business capability also speaks to organisation structure and the data ownership. And finally the word "micro" in microservices talks to the size of the service (How big is a microservice?). Let's dive into examples:

Since the term has been tossed around a few times, let’s examine what it could mean. My research led me in with 2 sets of subtly different definitions - first where Macroservices and Monoliths are synonymous and the latter which described it purely by size sitting between the size of a monolith and a microservice. From my experience of working in the industry and seeing a handful of these types of services being used I would state that it reflects few characteristics of Monoliths and few of macro-services. My proposed definition: “Macroservices refer to an architectural style where parts of business capabilities are built in a service, where these capabilities may not belong to the same domain. The service is independently deployable. May be owned by one or more teams”. Looking at examples where this pattern has been successful, I can duly state that this is NOT an end state implementation pattern i.e. it could be a stepping stone when moving from a monolith to microservices. It may allow strangling the monolith into smaller services. But it MUST be a stepping stone. This style comes with the disadvantages of tightly coupling (despite the smaller size as compared to monoliths) and also incurs the overhead of managing infrastructure and deployments without really achieving autonomy. Furthermore, rather than being a transient/temporal state this can become a thing eventually scaling back to the size of a monolith. Hence, this should truly not be a promoted style.

• Example: The stepping stone - We were working with a company which bloomed from a startup to an enterprise in a very short period. To achieve the quick scale up they acquired a few other products (from startups). One of the product they acquired was an n-tiered monolith itself which extremely coupled, and cost of change was increasing exponentially. Some domains in this monolith had business logic for which no one knew an exhaustive set of test cases. To be able to break this monolith we proposed a few steps. First step was to identify the low-hanging fruits i.e. the more isolated and low risk domains and create microservices around them. Second was to identify highly coupled areas and lift and shift into macroservices which can be refactored and tested. This would allow moving at desired speed but also opening tighter knots in the monolith. The idea was the microservice itself would slowly be refactored and stripped down to a single domain.

In November 2016, ThoughtWorks technology radar listed debuted the term “Micro-frontends” as a technique in "Assess" state. Since then, it has moved to "Adopt" state on the radar. The definition on the radar states:

In this approach, a web application is broken up by its pages and features, with each feature being owned end-to-end by a single team. Multiple techniques exist to bring the application features—some old and some new—together as a cohesive user experience, but the goal remains to allow each feature to be developed, tested and deployed independently of others.

Put simply, you get all the benefits of delivering incrementally and independently, you have your independent codebase, and you can deploy independently in the frontend layer. You also inherit the complexity of the distributed system (as stated earlier, you make educated depictions based on factors such as domain complexity, firm size, wtc to go or not go with distributed approach).

For example: When you land on a search result page of an e-commerce website, the product tiles would be getting served from a product micro-frontend, the add to cart functionality from a cart micro-frontend, and the recommendations from a recommendation micro-frontend. Each of these micro-frontends are owned by a single team and can be developed, tested, and deployed independently.

Following the frontend we have the BFF layer. According to Sam Newman, this architectural patterns creates a backend for the frontend where a frontend might be a dedicated channel for a consumer (e.g. mobile, website, etc.) or might be a domain aligned independently deliverable frontend applications aka micro-frontends. Here the BFF service is:

• self-contained and independently deployable
• Tightly coupled to the frontend it is created for

The team owning the frontends owns this service and operates it autonomously. It comes with benefits such as reducing waste over the network due to over-fetching or under-fetching. It also is great at encapsulating functionality which are more specific to a specific channel.

Example 1: BFF by customer facing channel - Diving into an example of a digital retailer who has a mobile app and a website. The mobile app has a BFF service which is optimized for mobile devices and the website has a BFF service catering to the web.

Example 2: BFF by domain aligned frontend - In an accounting platform for small businesses, the teams are aligned by the domains. Each team has a micro-frontend, an optional BFF (based on the complexity of aggregations) and a domain service.

The knowledge base on experience APIs over the internet has exponentially increased but there were 2 very specific things which popped out explaining the need of this pattern:

• In the very first episode of “The Engineering Room with Dave Farely”, Dave Farely refers to his conversation with Eric Evans on microservices in which Eric states an observation that “the protocol of exchange of information between services is a distinct bounded-context distinct from the bounded context of the service”
• The other, where Sam Newman in his blog “Pattern: Backend for Frontend” under the section "Reuse and BFFs" expanded on the concern around duplication between BFFs themselves which leads to the dilemma of merging or not merging BFFs.

Both the above clicked in my head and matched perfectly with the problem solved with services exposing experience APIs. Here the Experience API exposes a boundary around a customer journey. Let’s understand this with an example: Let’s say we have a Payment Experience API which orchestrates the payments from consumer of both the channels - mobile and website. This experience service is responsible for an experience where customer wants to leverage split payments. The customer keys in 3 gift-cards and a credit-card for payment of their online order. The Experience API then does a pre-authorisation for all the supplied cards by calling a Payment API (Core API used by both digital and in-store channels). In case there is a failure to pre-authorisation the experience layer is able to release the money held on the previous cards by calling the same Core API for the payment domain. It may also offer other capabilities such as fraud detection.

Let’s go back to the 2 points we referred to:

• We are exploring a distinct bounded context from the point of view of a customer/user journey
• It removes the dilemma of re-usability stated by Sam in his blog.

These services have many benefits. As mentioned above, this brings in re-usability where the experience orchestration can be extracted from the frontend layer and/or the BFFs. Teams closer to the user experience and channels own this layer. They have a deep understanding of user journeys and can leverage this layer to achieve fine-grained control for the journeys. The layer can leverage asynchronous communication with downstream domain APIs, uplifting the efficiency and performance of the customer facing channels.

In Domain-Driven Design, bounded contexts set boundaries that expose business capabilities while protecting the internal models (a black-box approach). Each bounded context presents an opportunity to build at least one domain service, which can be exposed via a communication protocol. Aggregates and bounded contexts are the building blocks upon which microservices can be based. This is why, when considering a bounded context, there is always an opportunity to build at least one domain service. In some scenarios, it may be necessary depending on the complexity to build multiple microservices within the boundaries of a single bounded context.

For example, a Retail Consumer API might be a single microservice that exposes APIs to create, update, retrieve, and delete customer details. In contrast, an "E-commerce Order Management" bounded context could include multiple microservices, such as an ordering service, payment service, inventory service, and shipping service, each exposing different business capabilities. In this latter case, while an order might be placed synchronously, the shipping service could be triggered asynchronously by an event.

In the context of Domain-Driven Design, domains can be categorised as Core, Supporting, and Generic. Based on which domain we are working under the context of an in-house solution vs an off-the shelf solution can be leveraged. Core domains are the "bread-and-butter" of the firm and should be developed at a slow and thoughtful pace, whereas generic domains should be ones where off-the-shelf software can be very beneficial. This is a topic which I will explore in a blog later in more details.
